33 Coupe Interior 46        11/28/04

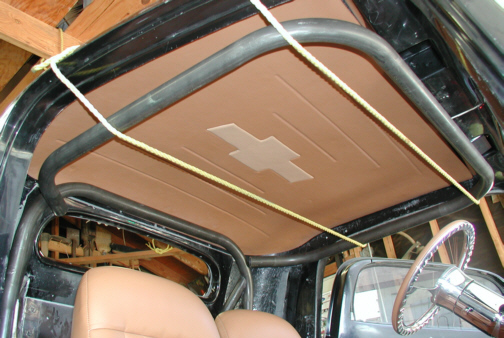

With the aid of some ropes, I could have them hold the tubing while I did some measuring. I used this system when I installed my headliner if you remember. What I plan on doing is cutting the roof hoop in two places so I can take it out. Where the two cuts are made, I'm going to install some couplers like I did the down-bars. My plan is to cut the hoop right about where the left rope is located. This way the main hoop will have four one foot long pieces welded to it. Two for the down-bars (which are already welded on) and two for the roof hoop. By doing it like this, I can still get the main hoop out by leaning it towards the front of the car and sliding it out. At least I'm pretty sure I can.






I used a four foot long level (which was used like a straight edge) and placed it against the ends of the hoop. Then I marked a line 13" from the ends on both (driver and passenger) sides of the tube. I also scribed a line along both tubes where the cuts would be made so I could have a point of reference if need be.

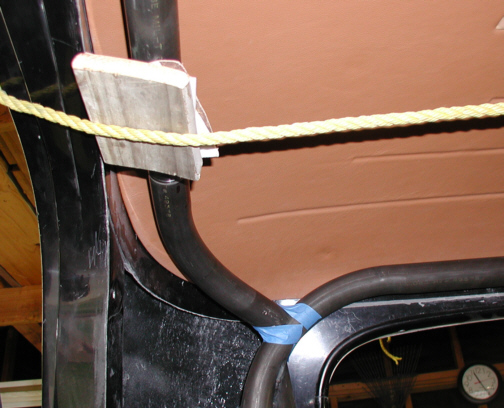

I used some small pieces of wood as shims so I could get the hoop at the right height while I was fitting the ends. I had to make many many trips in and out of the car trying to get the fit just right. After awhile, the ropes started to stretch and sag while I was working so I came up with a way to adjust them a little more.

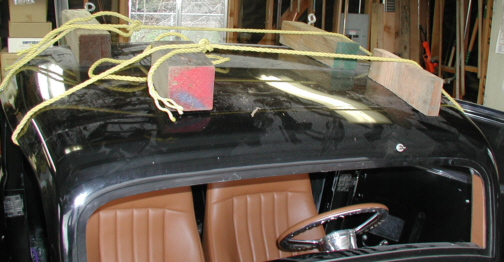

By adding some spacers to the top, it tightened the ropes just right. You do what ya gotta do....right!
