33 Coupe Last Details 21        6/03/04

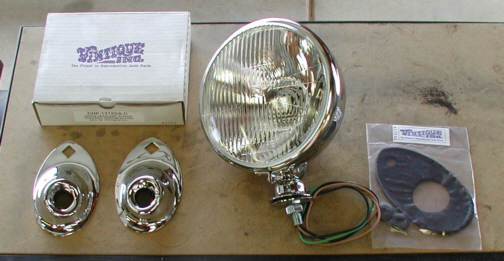

Let there be light. It was time to install my headlights and the ones I'm using are made by King Bee. I had three choices of finish's to chose from which are paint-able, chrome and polished stainless. I went with the polished stainless and hope they look good when I paint the car. The headlight mounts are made by Vintique Inc. which are chrome. These lights are 7" in diameter which is the same as a normal sealed beam but these have Halogen bulbs which are very bright. A stock headlight that would have come on a 1933 or 1934 back in the day were much larger but I wanted more of a hot rod look so this is why I choose the smaller ones.






After measuring and finding the spot to mount them, I drilled a 17/32" diameter hole through the fender because the stud coming out of the headlight was 1/2" so this would give me a small amount of room to adjust it. When I placed the mount on the fender, then placed the light through it and tightened the nut, the light didn't stand up straight anymore. The reason was because of how the fenders were curved and the light was being tightened down on a curved surface so it ended up at an angle instead of straight-up. Looking at the problem from under the car, I noticed that the stud was normal to the surface but I needed it to be at an angle to the surface so I welded a couple of washers together to see if that would solve the tilting headlight dilemma. The reason I used washers was because they already had holes in them for the headlight stud to pass through and it was easy to make. After determining the correct angle that I needed, I welded a small support to the other side of two washers and I now had the combination that would work.

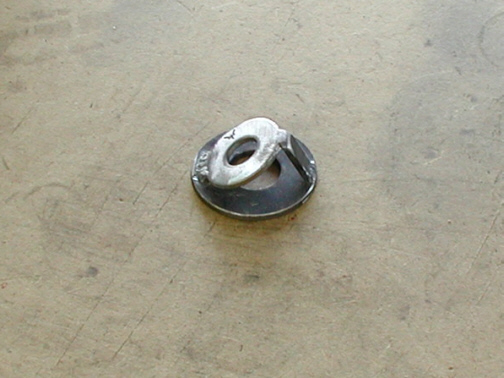

The distance between the two washers are one inch and if you notice, the washers are two different sizes. The reason is because if I used two 1/2" washers, the extreme angle would have not allowed the headlight stud to pass through so I just used a 5/8" diameter washer for the other one. It's not pretty but it works very well. I'll be covering the wires up with some purple stuff like you see in the picture below.

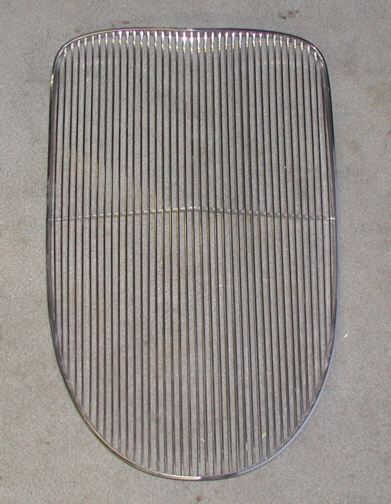

While I was at the front of the car, I figured I should install my grill too. This is a polished billet aluminum grill and it looks awesome. I ordered it from Redneck Street Rods the day I ordered my body so this means that I've had it for a long time now. I don't know who makes it but Wayne at Redneck said he knew a guy that made grills that were very nice so I had to add it to the list of body parts when I was ordering.
