33 Coupe Chassis 12        4/03/03

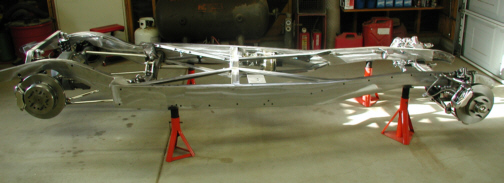

Well after hours of assembly, the rolling chassis is almost complete. There's still some work to do here but for the most part, I'm ready to put some old tires and wheels on and move it around. Lets look at some close-ups of the front and rear.

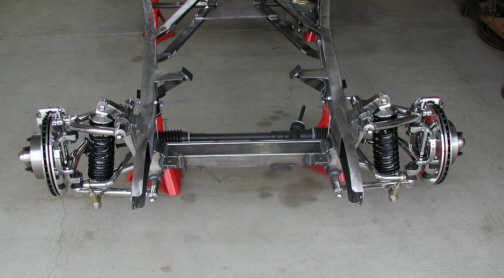

This is the front end which is starting to look like I'm getting somewhere. There's still a few pieces to bolt on yet but for the most part, it's done.

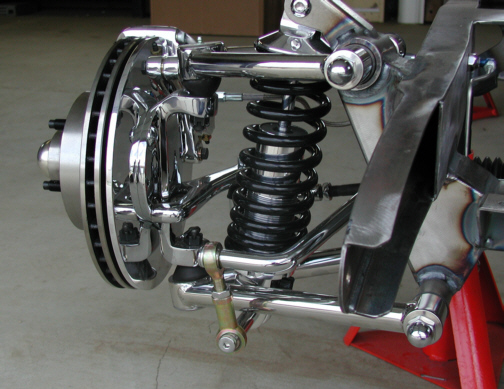

This shot shows a little more detail of what the A-arms and spindle look like. Notice the sway-bar and the Heim bearings that you can adjust at the end of it. This allows you to align the sway-bar to the correct angle easily.

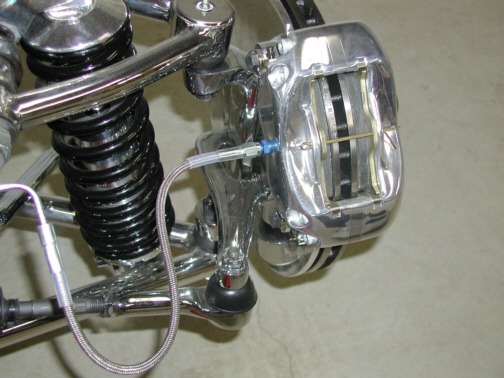

Here you can see the braided stainless steel brake line. There are blue anodized AN fittings on each caliper that you can see if you look close. Now all I need to do is bleed the brakes.
