Finishing Touches Continued

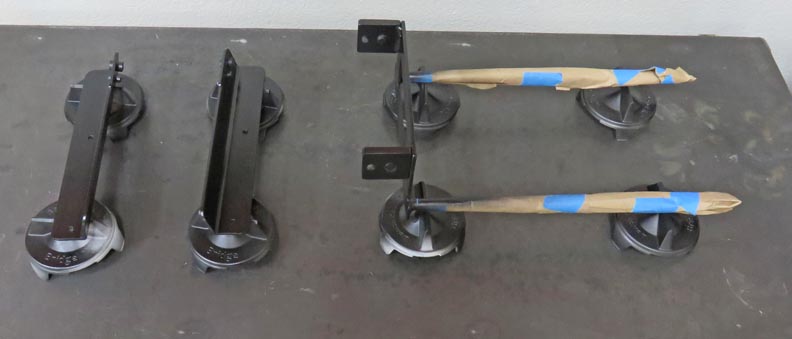

I used my side yard as my paint booth once again. As you can see, I
masked off the long pines and if you look close you can see some wooden
pins in all the holes so I didn't get paint in them.
|
|
 |
| Assembly

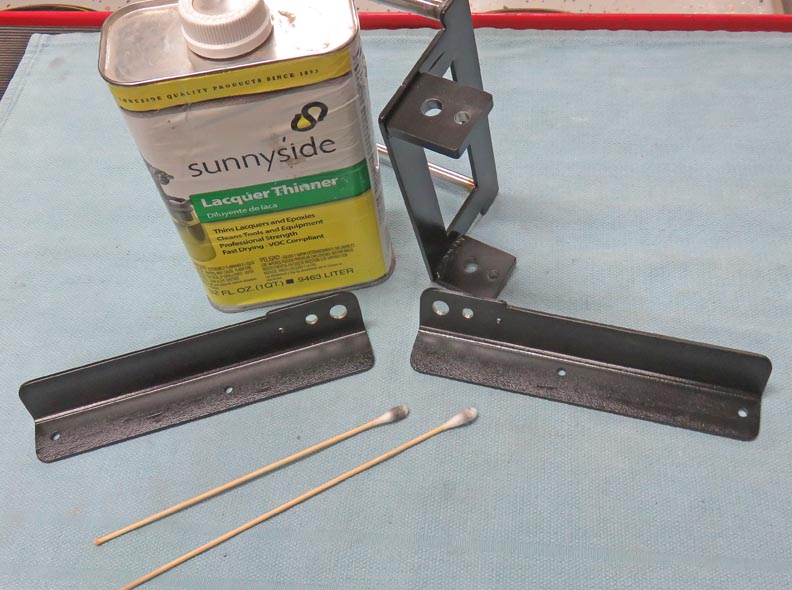

I'm using lacquer thinner along with some swabs to remove residual
paint from all the holes. This only took a few minutes and worked out
great.
|
|
 |

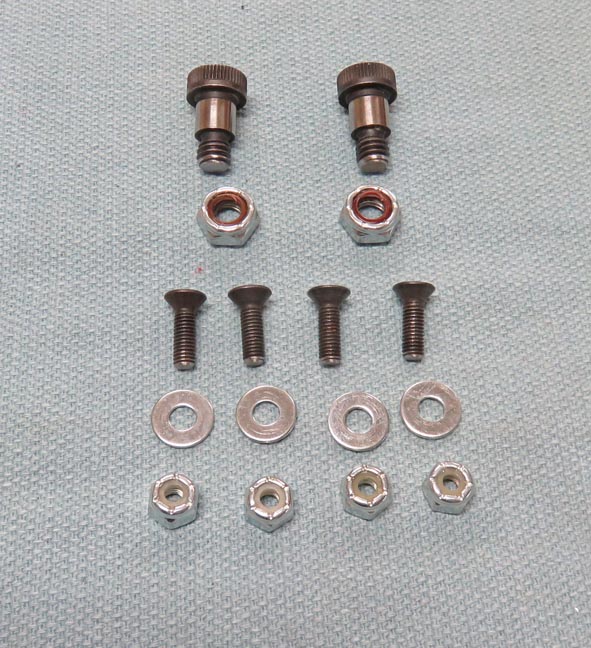

I decided to use lock-nuts on all the screws to make sure nothing comes
loose.
|
|
 |

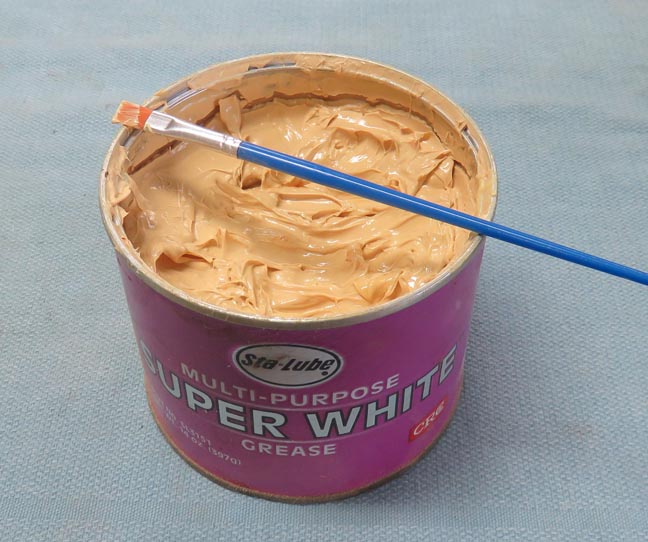

I'm going to use grease on all the moving parts.
|
|
 |

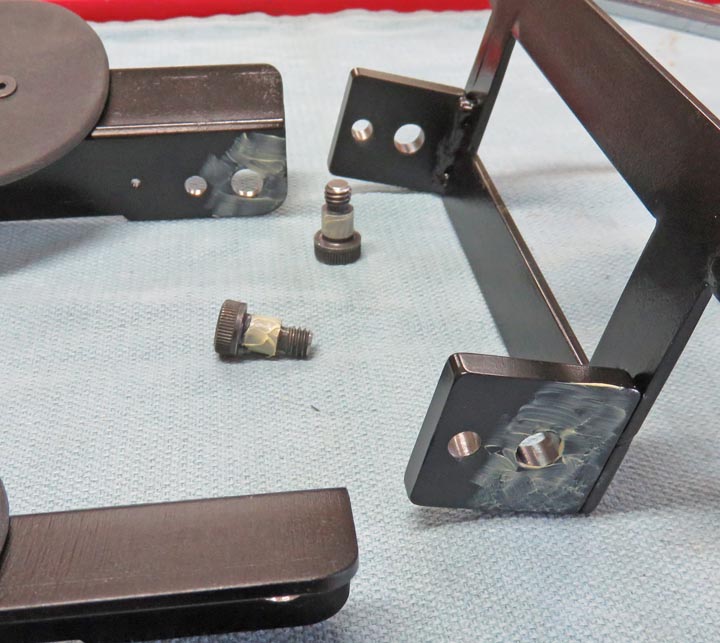

I applied some grease to areas that will be metal-to-metal, along with a
small amount on each shoulder bolt. This will make everything move nice and
smooth.
|
|
 |

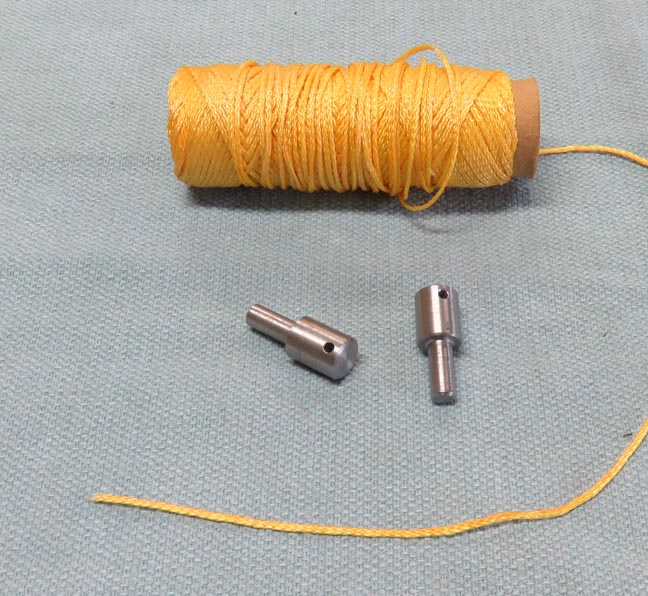

Here I'm cutting my string for my lanyards.
|
|
 |

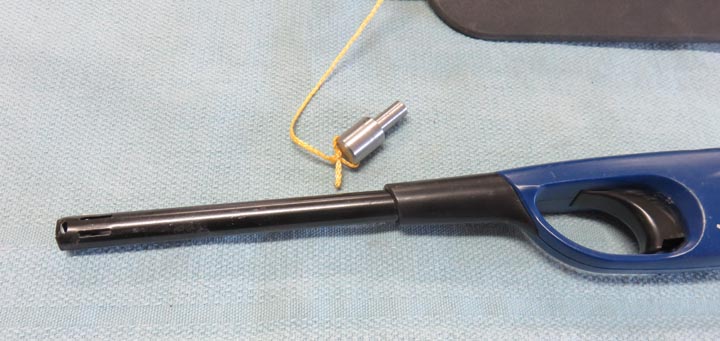

After I had my knots nice and tight, I burned all the ends so they
wouldn't fray.
|
|
 |
|
It's Finished

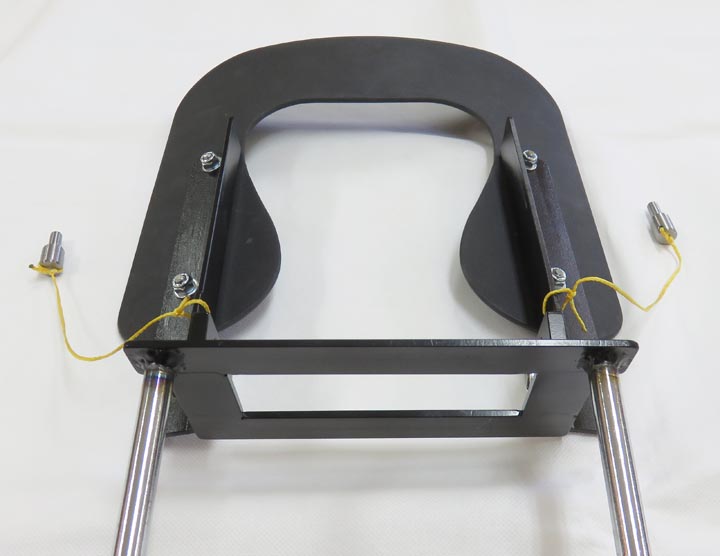

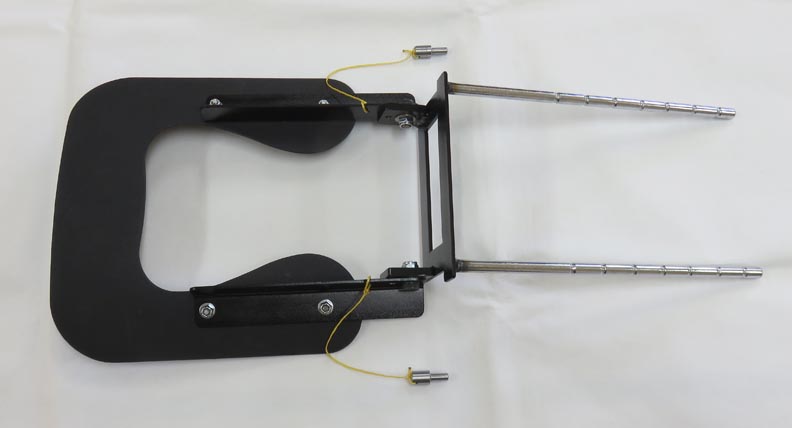

Here it is all finished.
|
|
 |

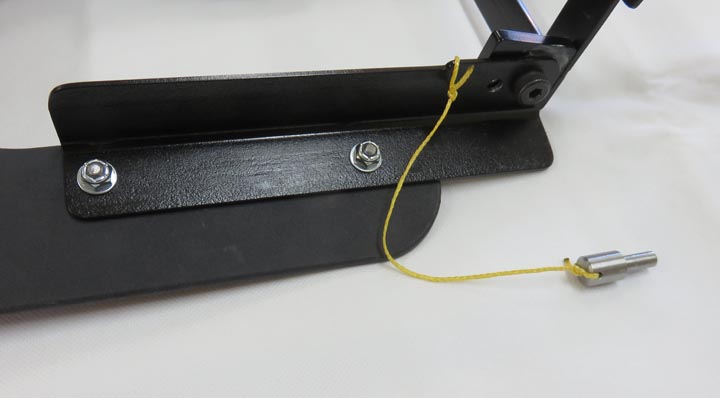

The lock pins won't get lost now and they slide in their holes nice and
smooth.
|
|
 |
Here you can see the painted extension and the welded pins.
|
|
 |
|
